    Exclusive!

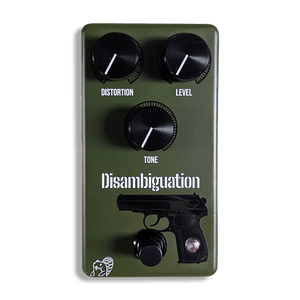

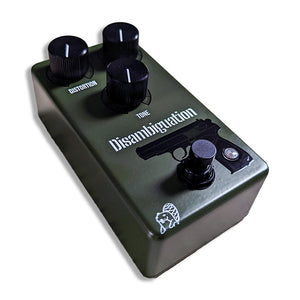

    DRUNK BEAVER Disambiguation

    Evokes the sound of a vintage Rat running full-tilt into a thick and raucous Red Army Big Muff

    £139.99

    About the DRUNK BEAVER Disambiguation


    The Drunk Beaver Disambiguation is a hybrid Rat/Big Muff - taking two of the most iconic distortion and fuzz pedals in rock and slamming them together for some gnarly sounds. The Disambiguation delivers a godly mid-hump and evokes the sound of a vintage Rat running full-tilt into a thick and raucous Red Army Big Muff.

    The Rat

    The Rat-style gain stage uses a UD1408A op-amp manufactured in Kyiv; it's a Soviet-era clone of the famous LM308 chip found in the US-built Rat.

    The Muff

    The two subsequent gain stages are based on the Russian Big Muff (using NOS Soviet KT3201EM transistors and KD521 diodes), while the tone stack is based on the Rams Head Muff, and Vitalii has used a JFET output stage for valve-like warmth and response.

    Disambiguation Controls

    Distortion - Affects amount of gain

    Tone - Based on the "Ram's Head" Big Muff tone stack. Turn anti-clockwise for more bass; clockwise for more treble.

    Volume - Effects the output level.

    Disambiguation Demo



    Disambiguation Features

    • Rat/Muff hybrid with NOS components
    • Handmade in Poland
    • Distortion, Level & Gain controls
    • Power: 9V centre-negative (not included)
    • Current draw: 2.3mA
    • Dimensions: 125B, 122mm x 66mm x 39.5mm
